Gondor Almond Sheller Machine Introduction
The almond sheller machine is a specialized piece of equipment engineered to crack the tough outer layers of almonds, apricot kernels, hazelnuts, and palm kernels with precision. Utilizing a robust pressure roller structure, the almond shell breaker machine allows users to fine-tune the roller gap based on the specific thickness of the nut. This adjustable design ensures a high shelling rate of approximately 98% while significantly reducing kernel breakage, making it an essential tool for maintaining product quality.
Whether you are looking for a single-stage unit or a high-capacity three-stage model, the almond shelling machine price offers excellent value by combining low energy consumption with a durable, stainless-steel construction. Designed for versatility, this almond shelling machine can operate as a standalone unit for small-scale nut roasting shops or be seamlessly integrated into a continuous production line alongside lifting and separating equipment for large-scale snack food manufacturers and edible oil pre-treatment facilities.

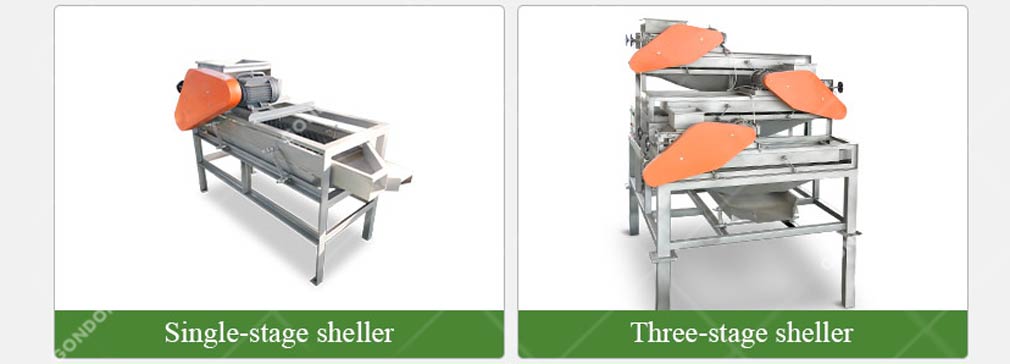

Gondor Almond Sheller Machine Models
The following are the main technical parameters of the almond sheller machine. You can choose the appropriate model based on your production capacity requirements and processing needs. You can also customize it according to your requirements. Please contact us to obtain detailed quotations.
| Product | Stroom | Capaciteit | Shelling Rate | Breakage Rate | Afmetingen |

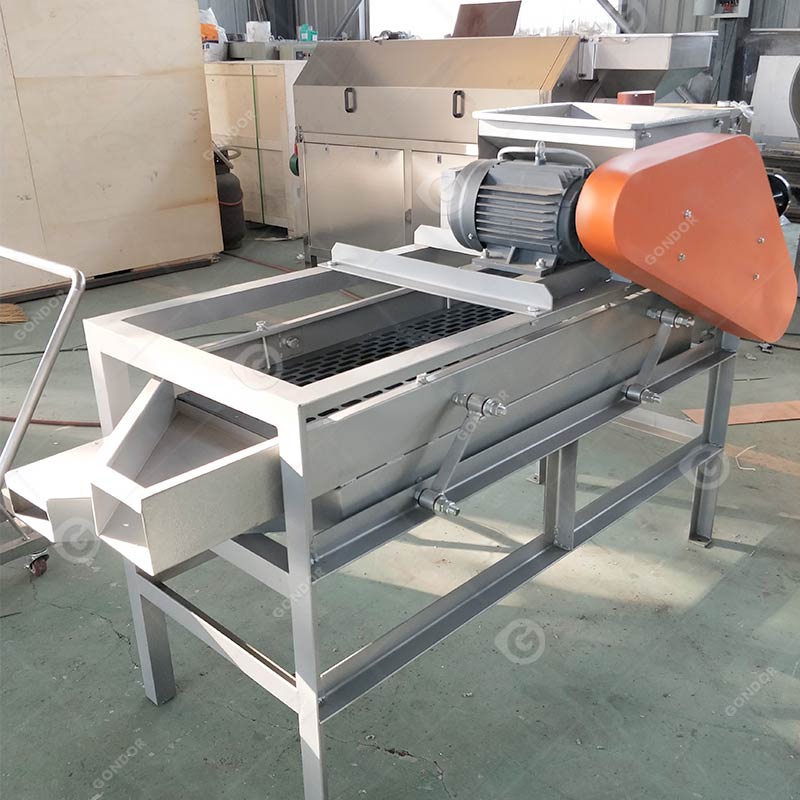

| Single-Stage Almond Sheller Machine | 1.5kW | 300–500kg/h | 98% | 5% | 1850×750×1300mm |

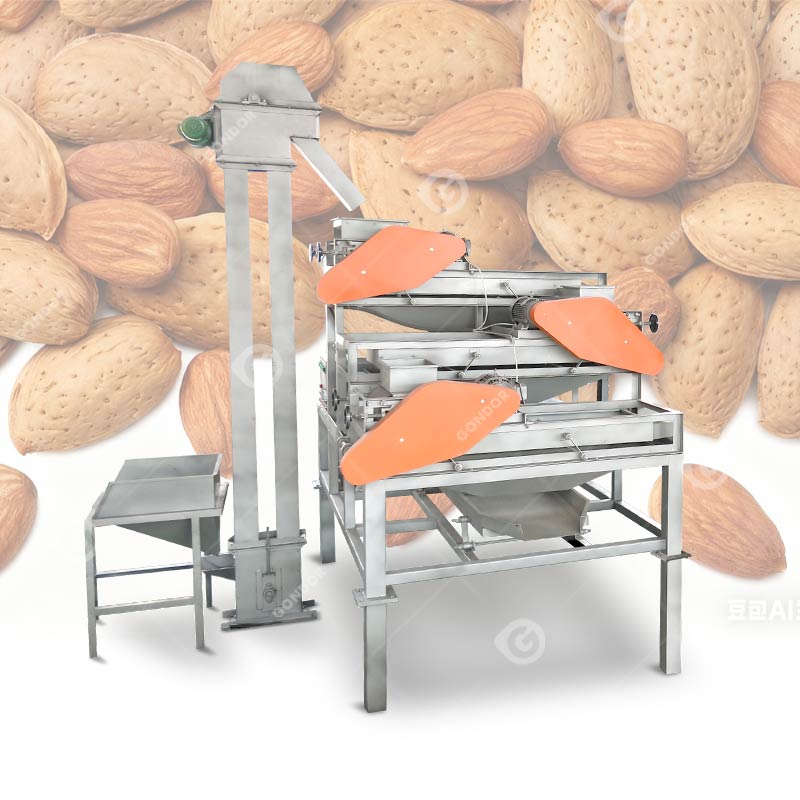

| Three-Stage Almond Sheller Machine | 6kW | 800–1000kg/h | Main Machine: 3000×2200×2600mm, Elevator: 1750×700×3500mm |
How Is the Shelling Gap Adjusted and Is It Easy to Operate?
The operation of this machine is highly intuitive, making it easy for even those without a mechanical background to get started quickly. The core of the adjustment lies in its flexible double-roller gap: you simply measure the flat thickness of the nut and use the manual device to set the gap 1–1.5 mm smaller than the nut itself. This “squeeze without crushing” principle allows the hard shell to be popped open as precisely as peeling a peanut.
Thanks to the simplified design and high-efficiency motor, a single operator can easily manage the entire process—from feeding to fine-tuning—saving time and labor while ensuring a stable and continuous shelling process. It is the ideal choice for nut processing plants looking to upgrade to automation.
What Is the Required Nut Size or Pre-Treatment Before Shelling?
To achieve the highest efficiency and protect your machine, we recommend the following pre-treatments before shelling:
- Clean and Debris-Free: Ensure that the raw nuts are thoroughly cleaned and screened. It is crucial to remove hard impurities such as stones, glass, or metal fragments, as these can damage the precision rollers and reduce the machine’s service life.
- Optimal Moisture Content: For the best “pop” effect, the nuts should be relatively dry. If they are too damp, the shells may become leathery and difficult to crack cleanly.
- Size Uniformity: While the machine is adjustable, it works best when the batch of nuts is relatively uniform in size. If your raw material has a wide range of sizes (e.g., a mix of very large and very small almonds), we highly recommend grading them first. This ensures the roller gap is perfectly calibrated for each batch, maximizing the whole-kernel rate.

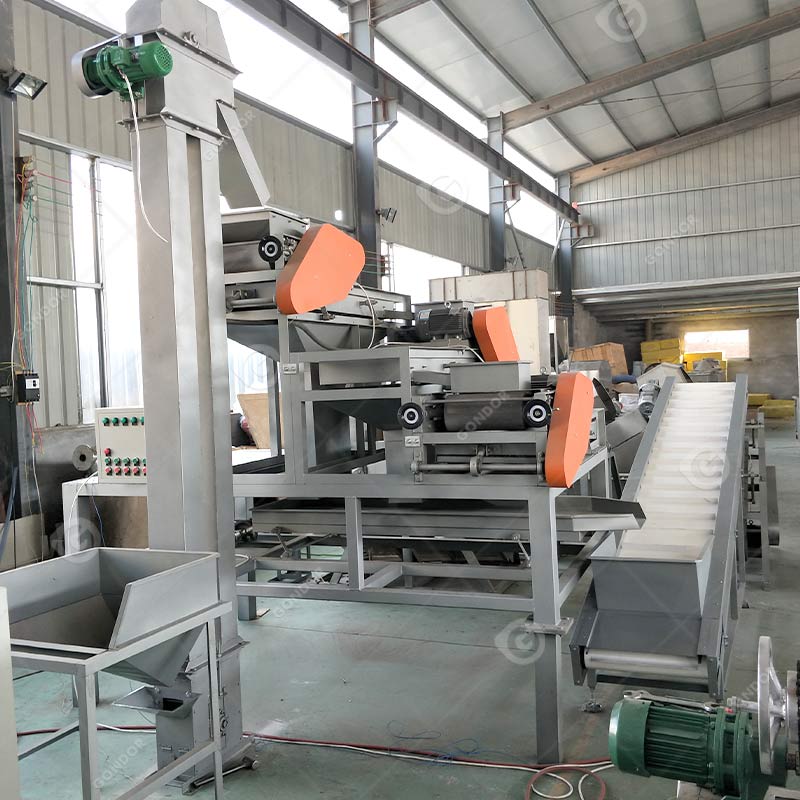

- Equipment Recommendation: If you prefer to skip manual grading, we suggest using our three-stage sheller. This advanced model features a built-in size sorting function that automatically processes nuts in different size categories simultaneously, providing a more seamless and continuous production experience.
Applicable Raw Materials for Gondor Almond Sheller Machine
Designed specifically for nuts with hard outer casings, this equipment uses adjustable pressure rollers to ensure a high shelling rate while maximizing the protection of the internal kernels.
Industry Applications of Gondor Almond Sheller Machine
As a core part of nut processing plants, this equipment helps businesses complete shelling efficiently, boosting the productivity of roasting and packaging.
Before pressing palm kernels or other oilseeds, this machine provides vital pre-treatment to increase oil yield and reduce wear on downstream equipment.
To meet the demands of nut-based snacks, the high shelling rate ensures a steady supply of raw materials, helping brands create premium kernel products.
Farms and cooperatives can process crops locally with this machine, extending the value chain and helping farmers significantly increase product added value.
Wholesalers can use primary processing and grading to flexibly meet market demands for various kernel sizes, effectively expanding their sales channels.
This equipment provides freshly shelled nuts for bakeries to ensure optimal taste and flavor, serving as an ideal tool for high-end food ingredient production.

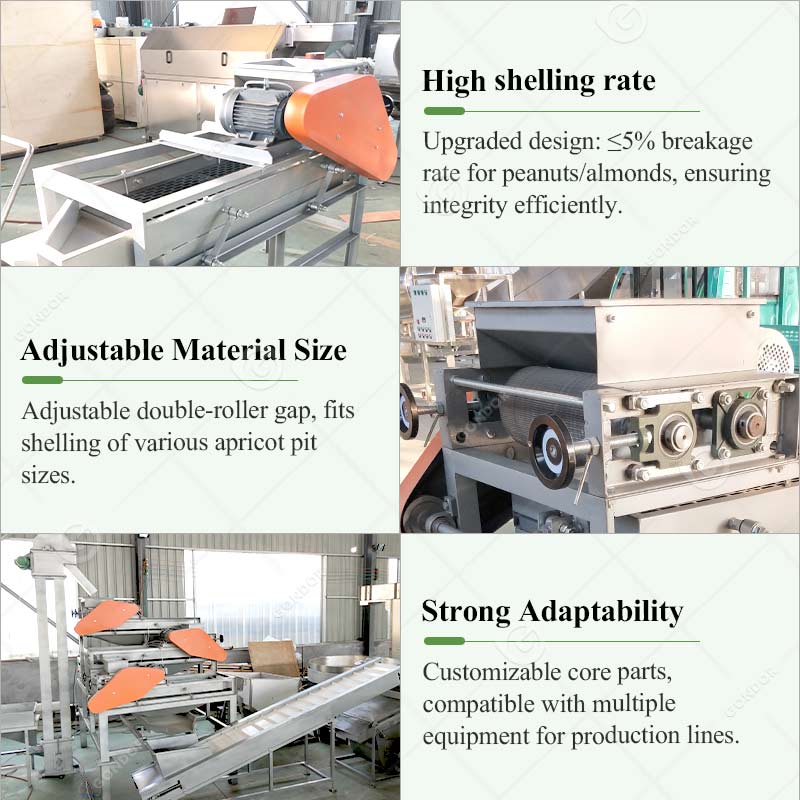

Gondor Almond Sheller Machine Features
- High Efficiency and Kernel Integrity: The upgraded pressure roller design achieves a 98% shelling rate and keeps breakage below 5%, perfectly balancing output and kernel quality.
- Adjustable Gap and High Compatibility: The double-roller gap can be precisely adjusted by material size, flexibly adapting to various nuts like apricot pits, palm kernels and macadamia nuts.
- Simple Structure and Single-Person Operation: The scientific and user-friendly design allows a single operator to manage the entire process, effectively reducing labor costs for processing enterprises.
- Stable Performance and Durable Construction: Motor-driven operation ensures continuous stability, while key parts made of stainless steel offer durability and strictly meet food hygiene standards.

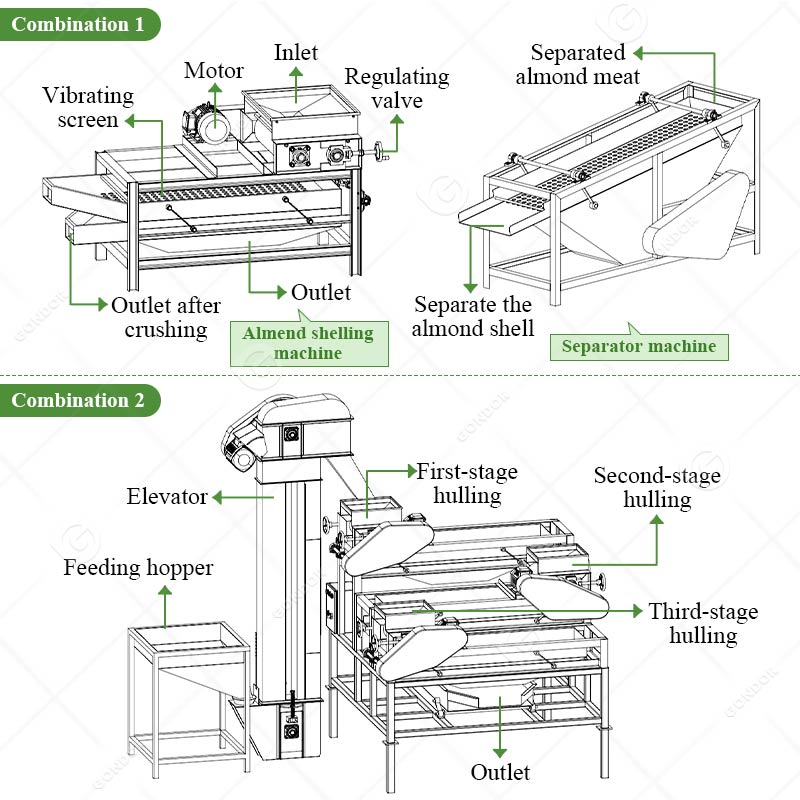

- Modular Design and Flexible Upgrades: With reserved standard interfaces, the unit can work alone or integrate into lifting and grading systems, helping the production line reach full automation.
- Low Energy Consumption and High Returns: By optimizing the power system to lower energy use while maintaining high output, it is an ideal choice for small plants to boost economic returns.
Aanbevolen ondersteunende uitrusting
To build a more efficient, fully automated nut processing workshop, you can also pair your core equipment with the following machines:
- Lifting Machine

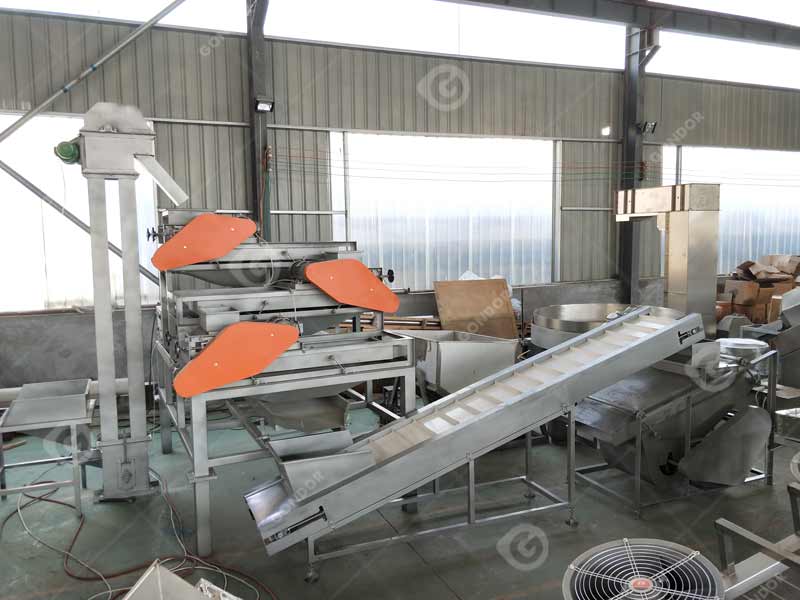

- Three-stage Sheller
- Kernel Separator Machine

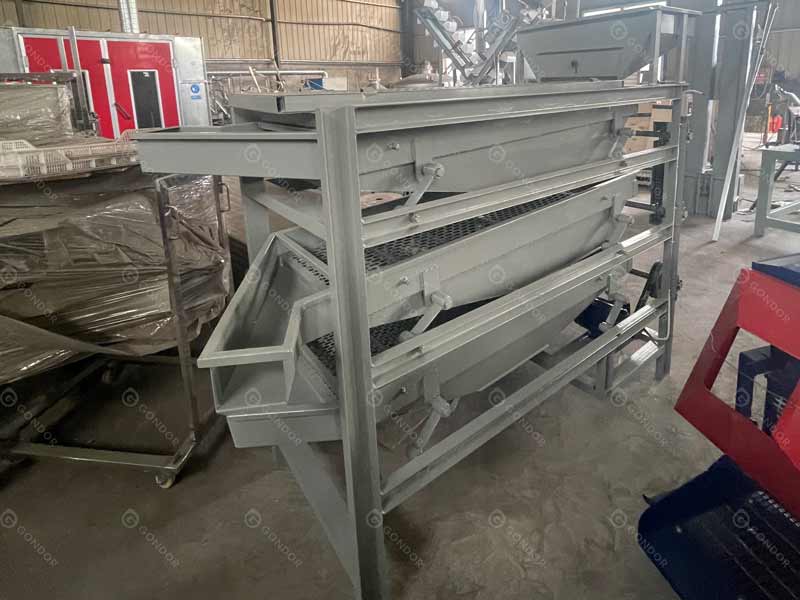

- Kernel Grading Machine

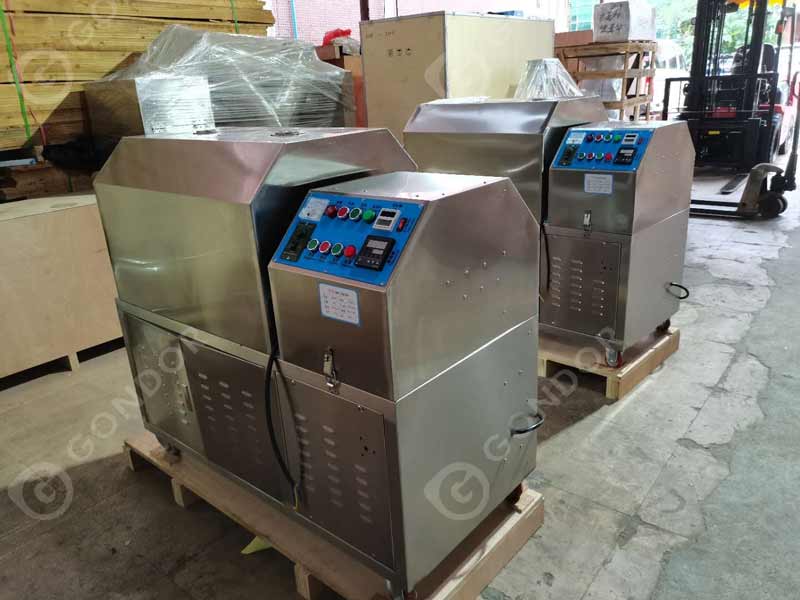

- Nuts Roaster

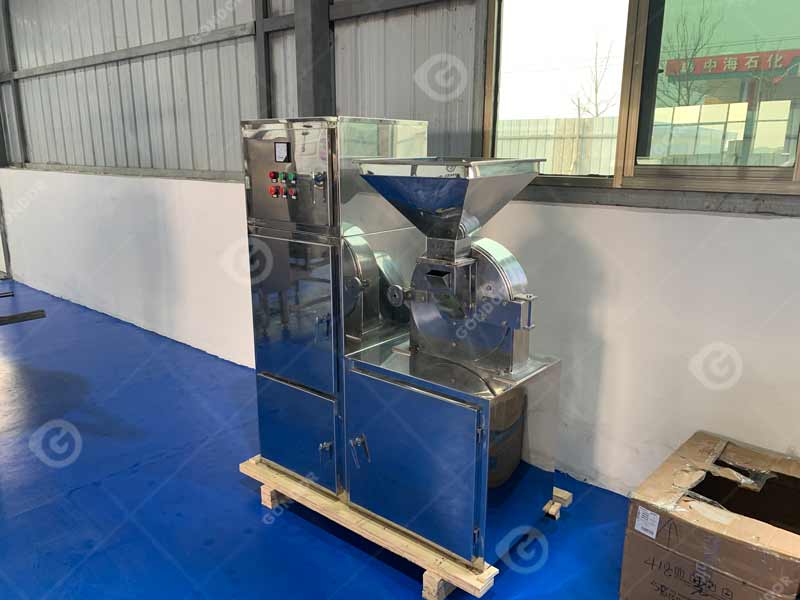

- Nuts Grinder
