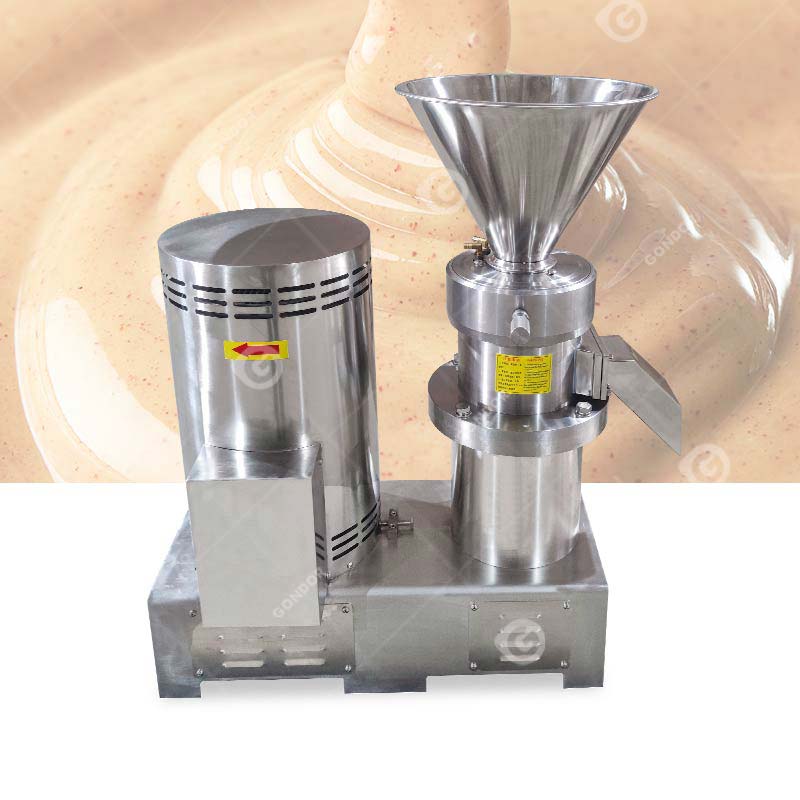

Gondor Commercial Peanut Butter Colloid Mill Introduction
Itu commercial peanut butter colloid mill is an efficient wet grinding and emulsifying solution designed for industrial peanut butter making. This colloid mill for nut butter machine integrates ultra-fine grinding, homogenizing, and mixing to produce smooth, uniform peanut butter with stable texture and consistent quality.
Gondor Peanut Butter Making Colloid Mill Machine Models
Below are the model parameters of our commercial peanut butter making machines. If you would like to know more details or customize the product, silakan hubungi kami. We will offer you free consultation and detailed quotations.
| Model | Voltase | Ukuran(mm) | Berat | Kapasitas |
| GD-70 | 3kw(Fase tunggal, 220ay) | 650x320x650 | 70kg | 60-80kg/jam |
| GD-80 | 5.5kw(Three-phase, 380ay) | 800x350x800 | 170kg | 100-150kg/jam |
| GD-130 | 11kw(Three-phase, 380ay) | 1000x350x1000 | 270kg | 200-300kg/jam |
| GD-180 | 30kw(Three-phase, 380ay) | 1200x450x1200 | 470kg | 500-800kg/jam |
| GD-200 | 37kw(Three-phase, 380ay) | 1250x500X1200 | 500kg | 800-1000kg/jam |
Applications of Commercial Peanut Butter Colloid Mill
kacang tanah, selai kacang, susu kacang, biji wijen, tahini, jagung, kedelai, saya pohon willow, pasta kacang, dairy-based semi-liquid products.
Pasta gigi, detergents, sampo, shoe polish, and other paste or emulsion-type products.
Paints, pigmen, pewarna, pelapis, lubricants, and similar viscous or emulsified materials.
Materials requiring ultra-fine wet grinding and homogenization in plastic, textile, paper, and biochemical industries.
Should I Choose a Square Outlet or a Circulating Pipe Outlet?
The choice depends on the material viscosity and processing requirements. The square outlet is suitable for medium- and high-viscosity materials that do not require reflux or secondary grinding, seperti selai kacang, chili sauce, and sesame paste, allowing direct discharge. The circulating pipe outlet is designed for low-viscosity materials that require reflux or further grinding, such as fruit juice and soy milk, to achieve finer and more uniform results.
Peanut butter with a grainy texture or insufficient smoothness is usually caused by the following factors:
Insufficient Raw Material Pre-treatment
Inadequate roasting, incomplete skin removal, or oversized peanut particles can negatively affect the grinding process and leave a gritty texture in the final product.
Mismatched Grinding Parameters
Improper settings such as rotor speed, grinding gap, or feeding rate may result in insufficient shear force, preventing the peanuts from being finely ground.
Insufficient Grinding or Lack of Circulation Grinding
For peanut butter that requires higher fineness, a single pass may not be enough. Circulation or reflux grinding is often necessary to further improve smoothness and uniformity.
Variations in Oil Content or Formulation
Different peanut varieties, oil content levels, and formulation ratios can influence grinding performance and require parameter adjustments.
You can significantly enhance the smoothness and consistency of peanut butter by improving raw material preparation, optimizing machine settings, and applying circulation grinding when needed.
Features of Gondor Commercial Peanut Butter Colloid Mill
- Nyaman & Efficient Operation: Compact structure enables quick start-up and smooth processing.
- Mudah Dioperasikan: Simple operation design reduces training time and labor requirements.
- Wide Application Range: Suitable for various paste, semi-liquid, and emulsified materials.
- Konstruksi Baja Tahan Karat Kelas Makanan: Higienis, tahan korosi, and compliant with food processing standards.
- Efisiensi Produksi Tinggi: Continuous working capability ensures stable output and consistent quality.

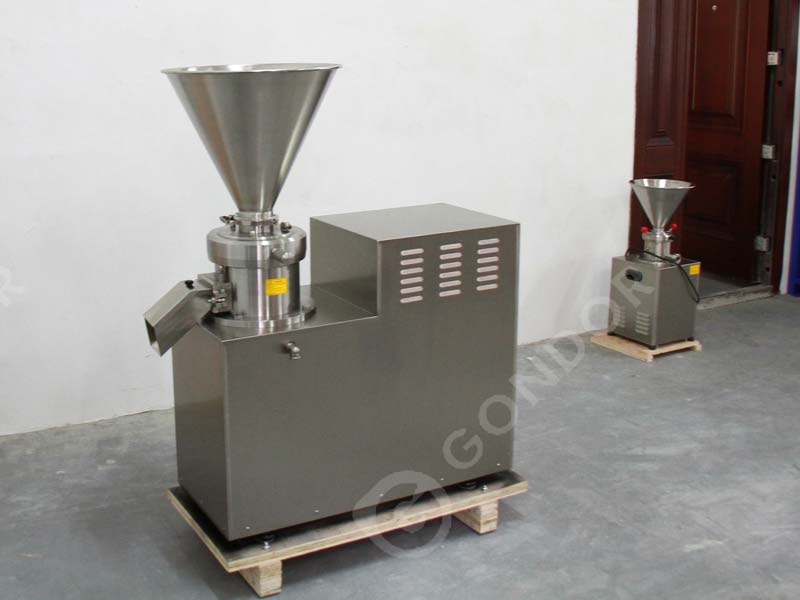

See the Peanut Butter Colloid Mill in Action
To help you better understand the working performance and grinding results, we have prepared a real production demonstration of the peanut butter colloid mill. From raw peanut feeding to ultra-fine grinding and smooth butter discharge, you can clearly observe the machine’s stable operation, pemrosesan yang efisien, and consistent output quality. See how easily it transforms peanuts into rich, creamy peanut butter.
Peralatan Pendukung yang Direkomendasikan
To build an efficient lini produksi selai kacang, the peanut butter colloid mill can be combined with the following supporting equipment to form a complete processing solution:
- Peanut Sheller

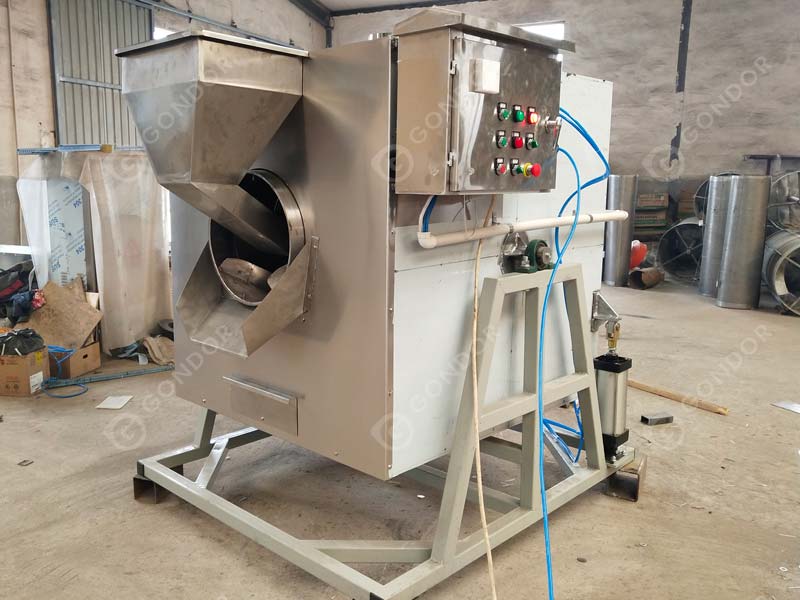

- Peanut Roasting Machine

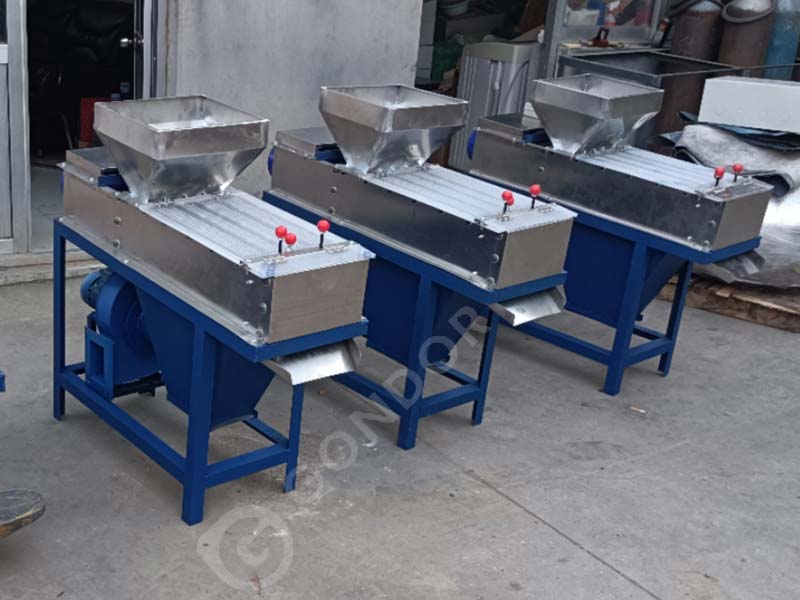

- Peanut Skin Remover
- Mesin Pengisian
