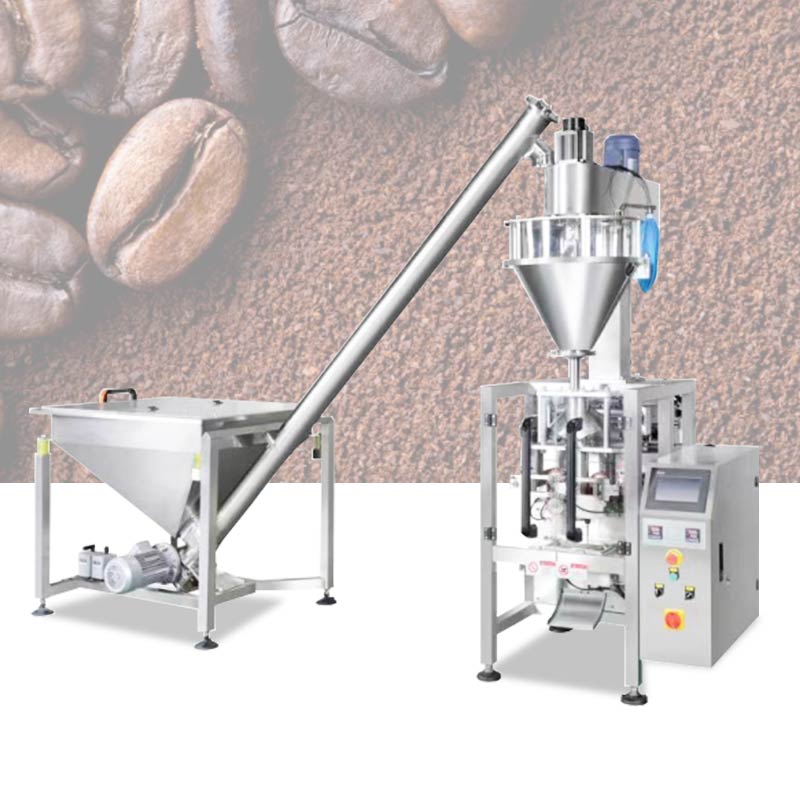

Screw powder filling machine is widely used in food, chemical industry, daily chemical industry and industrial materials industry, and accurately packages powder and granular materials such as milk powder, pigment, cosmetic powder and metal powder to meet diversified production needs.

Brand Name: Gondor
Voltage: 220V/380V
Driven Type: Electric
core componets: Motor, PLC, Engine
Filling Material: Powder
Packaging Speed: 5-60 bag/min
Packaging Accuracy: ± 1%
Bag Width: 60-200,100-250,180-350, 260-430, 290-580mm
Bag Length: 80-300, 80-350, 100-500, 100-600, 1000mm
Additional Customization: High-Speed Productioninflatable Devices (Nitrogen, Air, Oxygen)
Certification: ISO 9001, ISO 14001, ISO 45001, CE, BSCI, ETL

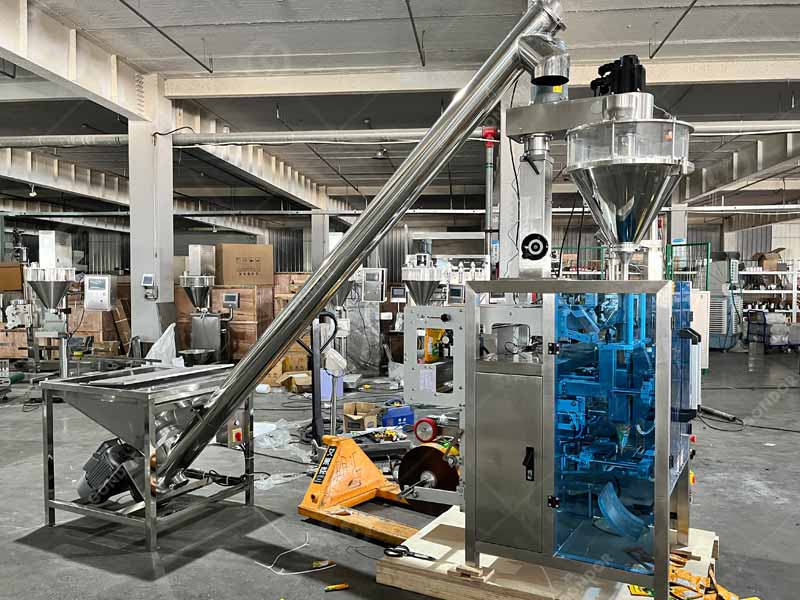

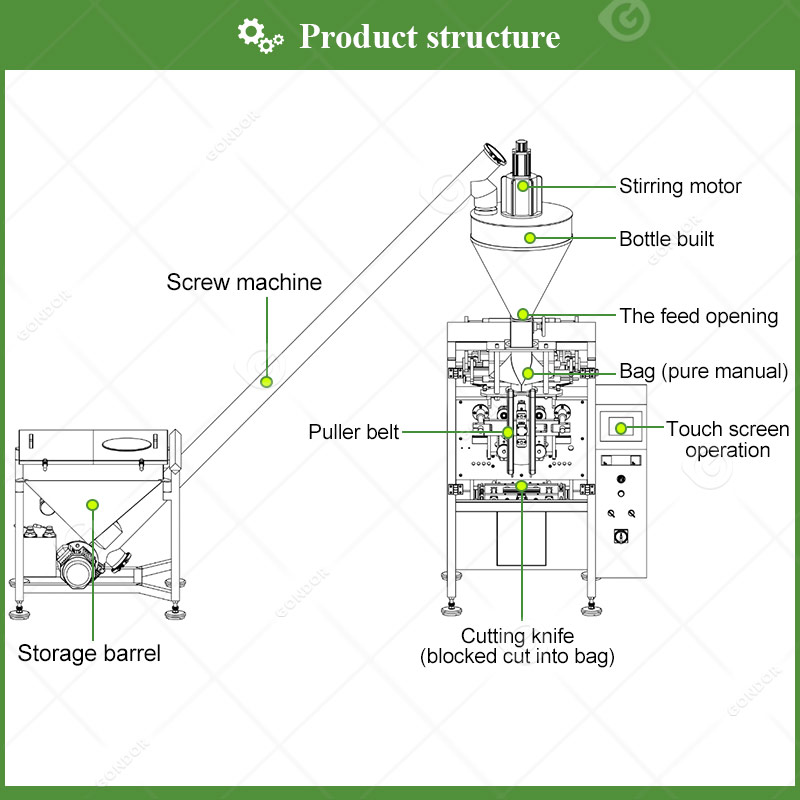

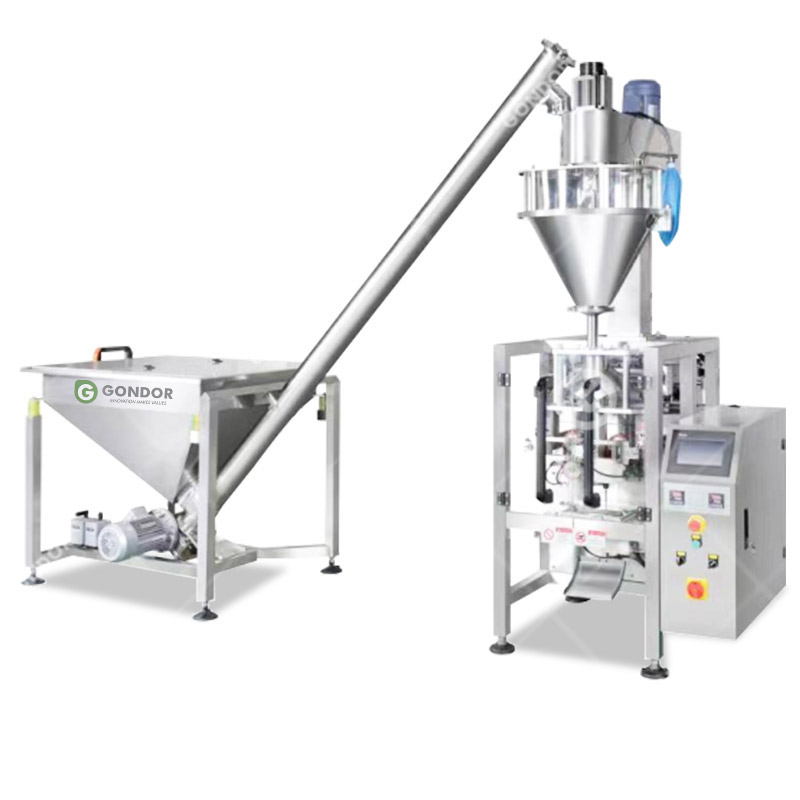

In modern industrial production, accurate measurement and efficient packaging of powder materials are the keys for enterprises to enhance competitiveness and reduce costs. To address these needs, our screw powder filling machine integrates automatic metering, high-speed filling, and heat sealing. Specifically, the core metering screw is made of high-quality alloy steel, which is wear-resistant and corrosion-resistant. Moreover, it is equipped with a sensitive and fast servo motor control system, with an accuracy of ±0.1g while achieving a filling accuracy of over 99.7%. Not only does this equipment enable the high-speed production of 300-3600 packs per hour, but it also helps enterprises reduce waste, save energy, and increase efficiency. As a result, it is a smart packaging weapon trusted by customers in many industries.
high - efficiency automatic powder filling machine

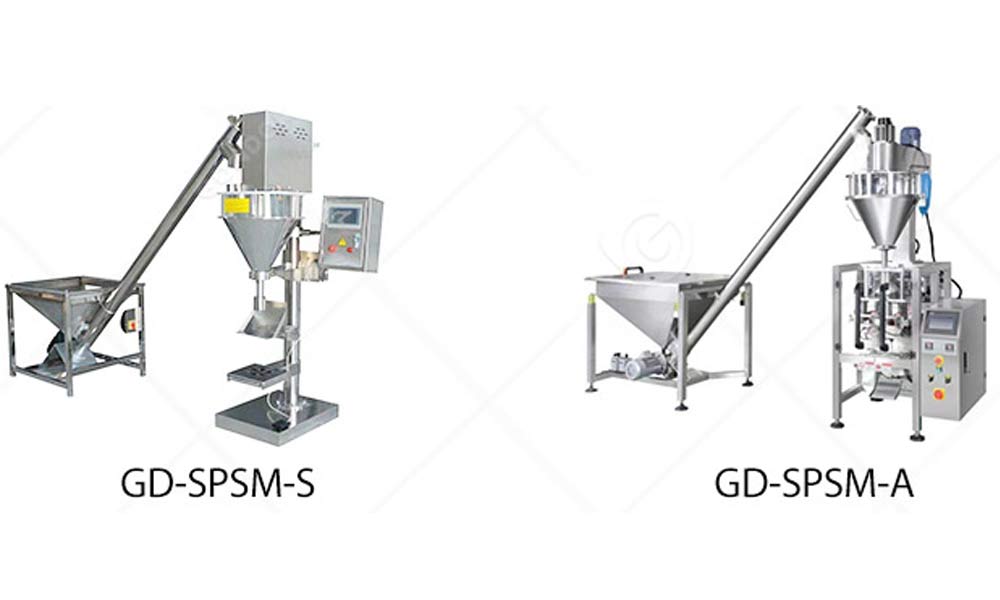

 Model GD-SPSM-S   GD-SPSM-A200 GD-SPSM-A300   GD-SPSM-A420
 Measuring Scope  5g-5000g  200-1000g  1-100g(3-100ml) 150-120ml
Bag Size / L: (maximum)280mm

W: (maximum)200mm

L:30-170mm

W:30-130mm

L:80-300mm

W:50-200mm

 Packing Speed 1000-1500bags/h  15-25 bags/min  30-60bags/min  60bag/min
 Total Power AC380V50HZ 2.5kw  AC220V 50-60Hz/2.2kW  220V/50Hz/1.4kw 220V/50HZ2.2kw
 Size  850x1000x2000mm 1424*980*1343mm 900*1100*1900mm 1451*950*1360mm
 Weight  150kg 365kg 400kg 540kg

Applicable Fields of Screw Powder Filling Machine

Screw filling machine is widely used, which can easily meet the production needs of different fields and different powders, including:

Food Industry

Milk powder, coffee powder, flour, seasoning, protein powder, cocoa powder, instant beverage powder, etc.
Chemical Industry

Pigments, dyes, chemical raw material powder, plastic particles, detergent powder, etc.
Cosmetic Industry

Cosmetic powder, talcum powder, mask powder, aromatherapy powder, etc.
Industrial Materials

Metal powder, ceramic powder, carbon powder, and other high-value-added powders.
Whether it is superfine powder or granular materials, the equipment can be accurately adapted, and the diversified bag types and packaging sizes can be selected to meet the customized needs of different customers in the market.

Excellent Efficiency of Automatic Powder Filling Machine

Automatic powder filling machine not only pursues precision, but also is unique in its intelligent and humanized design. Its main advantages include:

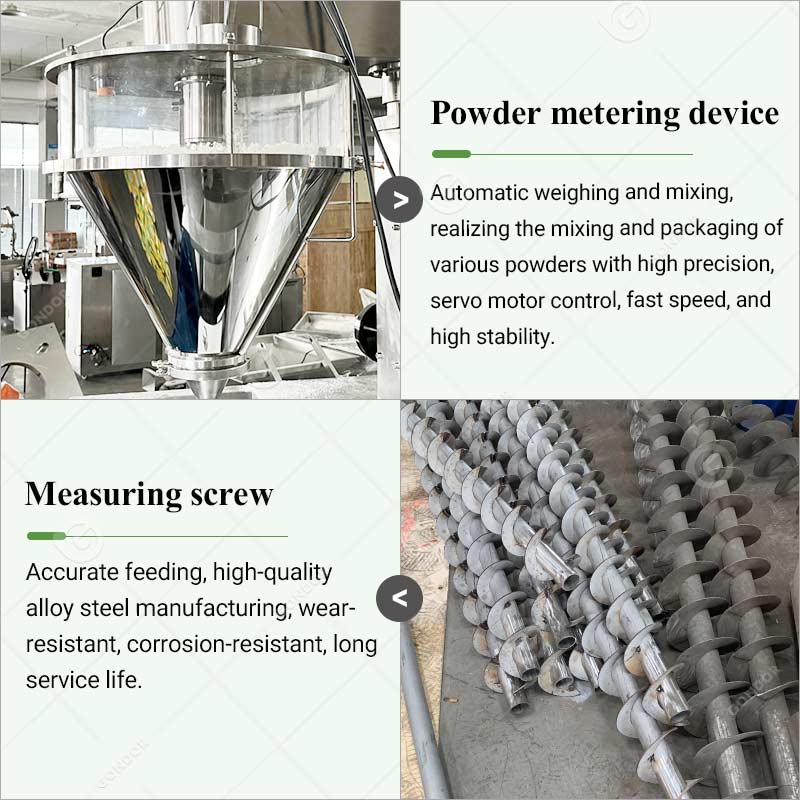

Accurate Measurement
  • The high-precision metering system ensures that the error is controlled within ±0.1g, guaranteeing accuracy to within each gram.

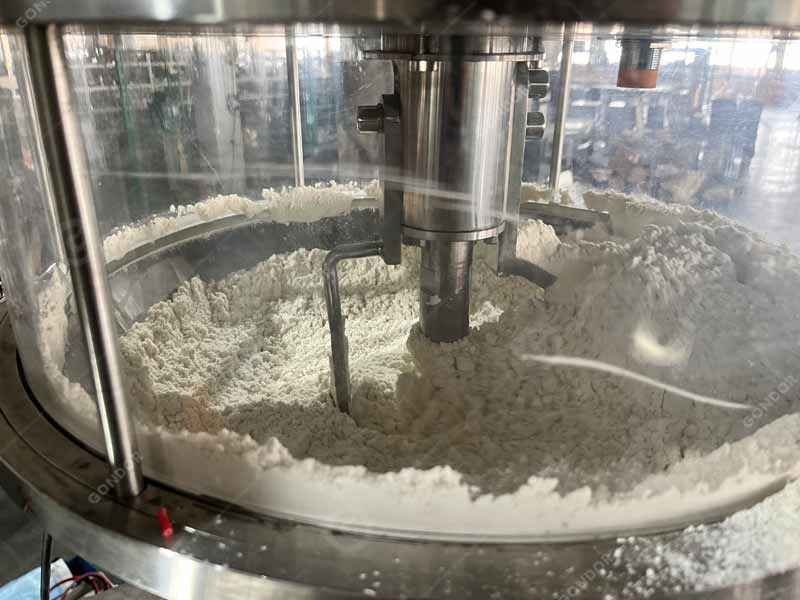

  • Automatic stirring function effectively prevents powder from caking and ensures uniform filling.
High-Speed Production
  • Up to 3600 packs/hour filling speed, greatly improving production efficiency.
  • Servo motor drive, stable and reliable, supporting long-term continuous operation.
Low Residue Design
The internal structure of the equipment is optimized, and the powder emptying rate can reach 99%, which reduces waste, is easy to clean, and prevents cross-contamination of materials.
Multiple Packaging Materials Compatible

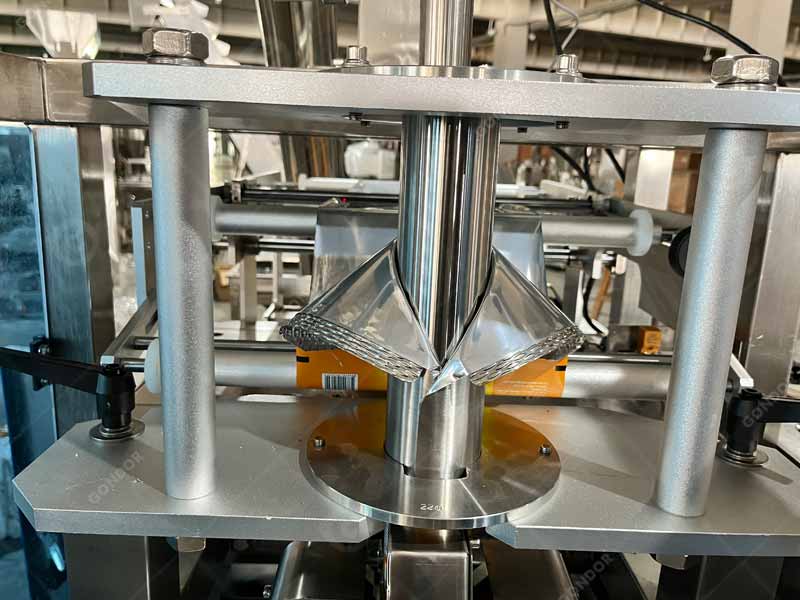

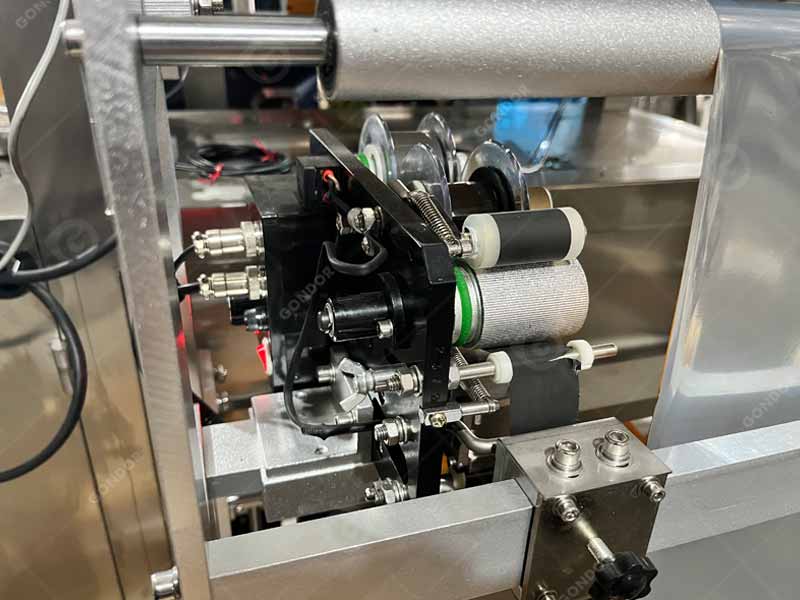

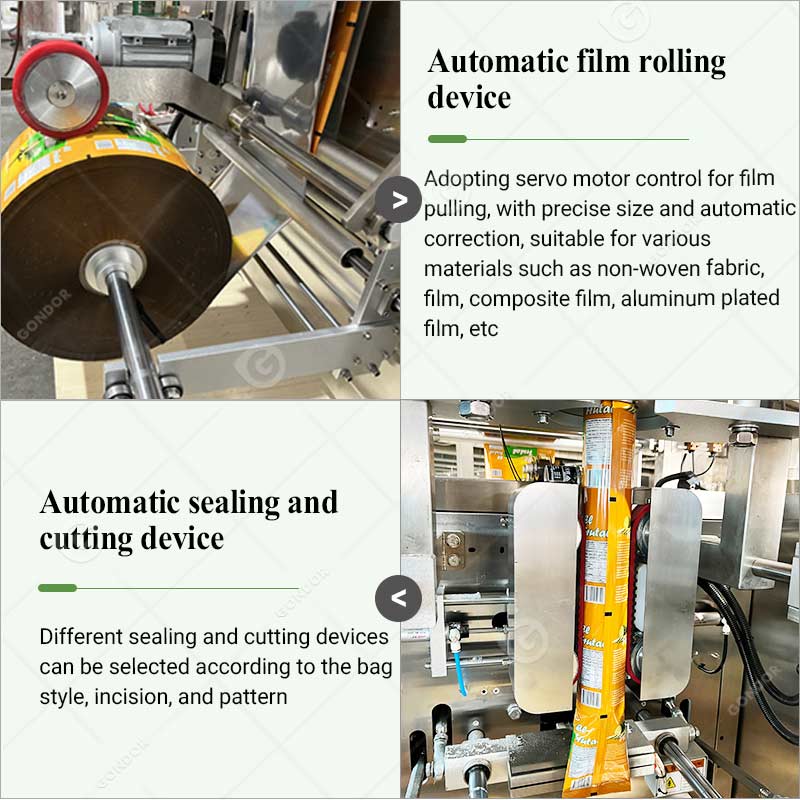

The automatic film winding device can be adapted to a variety of packaging materials such as non-woven fabrics, films, composite films, aluminum-plated films, etc., and enhance the visual sense and texture of product packaging.
Dust-Proof & Environment-Friendly
Closed structure, preventing dust from overflowing and ensuringa  clean production environment.

Explore More Packaging Solutions

In addition to the screw powder filling machine, we also provide a full range of intelligent packaging equipment, including vertical packaging machine, heat shrink tunnel machine, double chamber vacuum sealer, etc., which can be customized according to your different product and process requirements. Want to know more about how to improve your production efficiency and product value through advanced powder packaging technology? Welcome to contact us for more information or to customize the exclusive scheme!
