Gondor Fruit Juice Production Line Introduction
Gondor juice production line offers a complete, efficient solution for turning fresh fruits into high-quality bottled beverages. Covering washing, crushing, juice extraction, blending, sterilization, and automatic filling and packaging, the line ensures stable, continuous, and large-scale production. Made with food-grade stainless steel for hygienic operation, it preserves natural flavor and nutrients while maximizing yield.

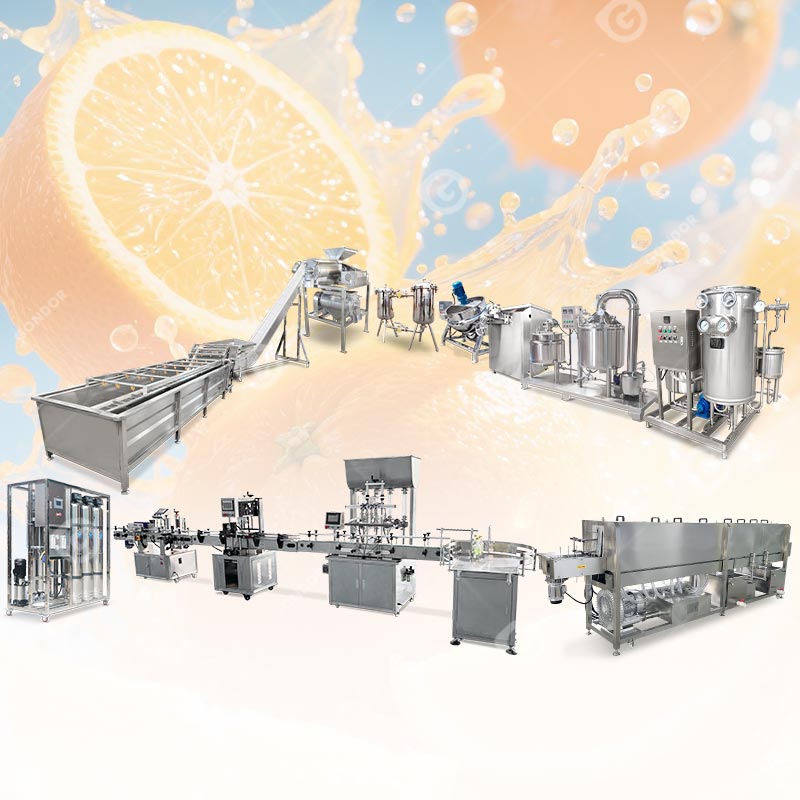

Gondor Juice Beverage Production Line Models
Explore our complete juice production line, featuring high-quality machines for washing, extracting, filtering, sterilizing, and filling. Get a competitive juice production line price while ensuring efficient, large-scale beverage production.
| Machine Name | Dimensions | Power | Weight | Quantity |
| Bubble Washing Machine | 4000×1350×1450mm | 5.8kw | 300kg | 1 |
| Vibrating Dehydrator | 1950×1135×1200mm | 0.08kw | ||
| Air Dryer | 3000×1100×1500mm | 5.25kw | 500kg | |
| Juice Extractor | 950×400×1100mm | 3kw | 130kg | 2 |
| Twin Filter | 900×300×800mm | 5m³/h | 30kg | 1 |
| 300L Sugar Boiling Kettle | 1550×1150×1450mm | 1.5kw | 175kg | |
| Homogenizer | 1010×616×975mm | 4kw | 400kg | |
| Vacuum Degassing Machine | 1035×750×2840mm | 5.2kw | 270kg | |
| Tubular Sterilizer | 920×920×1400mm | 2.2kw | 280kg | |
| Fully Automatic Filling Line | 3000×1500×2000mm | 5.5kw | 1000kg | |
| RO Reverse Osmosis Water System | 1600×700×1680mm | 1.65kw | 410kg |

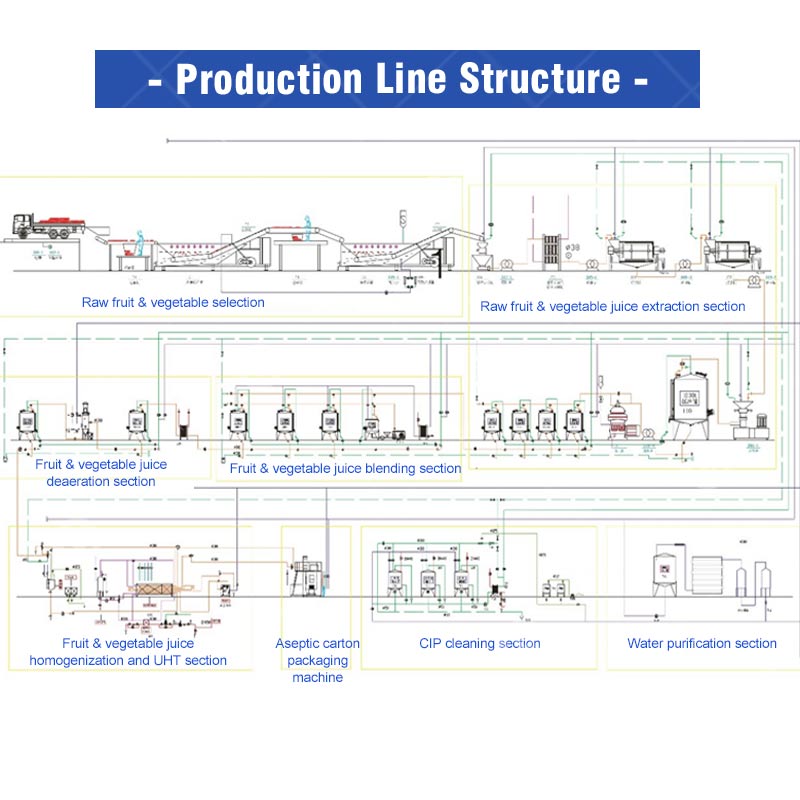

Juice Production Process
Our juice production line follows a complete, step-by-step process to transform fresh fruits into high-quality bottled juice:
1. Washing
Fresh fruits are thoroughly cleaned to remove dirt and impurities.
2. Sorting
Fruits are sorted by size and quality to ensure consistent juice output.
3. Crushing
Fruits are crushed to break down the pulp and prepare for juice extraction.
4. Juice Extraction
The crushed fruit is pressed to extract maximum juice.
5. Filtration
Juice is filtered to remove seeds, peel residues, and large particles.
6. Blending
Different batches or fruit types are blended to achieve consistent flavor.
7. Homogenization
Juice is homogenized for smooth texture and uniform composition.
8. Vacuum Deaeration
Air is removed to improve shelf life and prevent oxidation.
9. UHT Sterilization
Juice undergoes ultra-high-temperature sterilization for safety and extended shelf life.
10. Filling
Sterilized juice is filled into bottles automatically and packaged for distribution.
Gondor Juice Production Line Application Products
Fresh passion fruits are processed into flavorful juice, preserving natural aroma and nutrients.
Ripe tomatoes are converted into smooth, rich juice for healthy beverage production.
Sweet pineapples are processed to produce vibrant, refreshing juice for bottling.
Ripe mangoes are transformed into smooth, naturally sweet juice for drinks.
Fresh apples are juiced to produce consistent, nutritious, and flavorful beverages.
Kiwi fruits are processed into vitamin-rich juice, keeping flavor and color intact.
Applicable Industries for Juice Production Line
For producing bottled fruit juices, pulpy drinks, and mixed beverages.
Processing fresh fruits into juice, puree, or concentrate for retail or industrial use.
Integrating juice lines into larger food production operations.
Producing vitamin-rich, natural juices for functional beverage markets.
Processing fruit blends and nectars with pulp or clear juice.
Preparing high-quality fruit juice for international markets.
Advantages of the Juice Production Line
- High Efficiency: Complete processing from washing to packaging ensures large-scale, continuous production.
- Flexible Operation: Adjustable for different fruits and juice types: clear juice, pulp juice, or concentrate.
- Hygienic Design: All product-contact parts made of food-grade stainless steel for safety and durability.
- Nutrient Preservation: Maintains natural flavor, color, and nutrients of the fruit.
- Customizable Modules: Optional aseptic filling, vacuum concentration, bottle blowing, and CIP cleaning for expansion.
- Easy Maintenance: Simple operation and convenient cleaning reduce downtime and operational costs.
