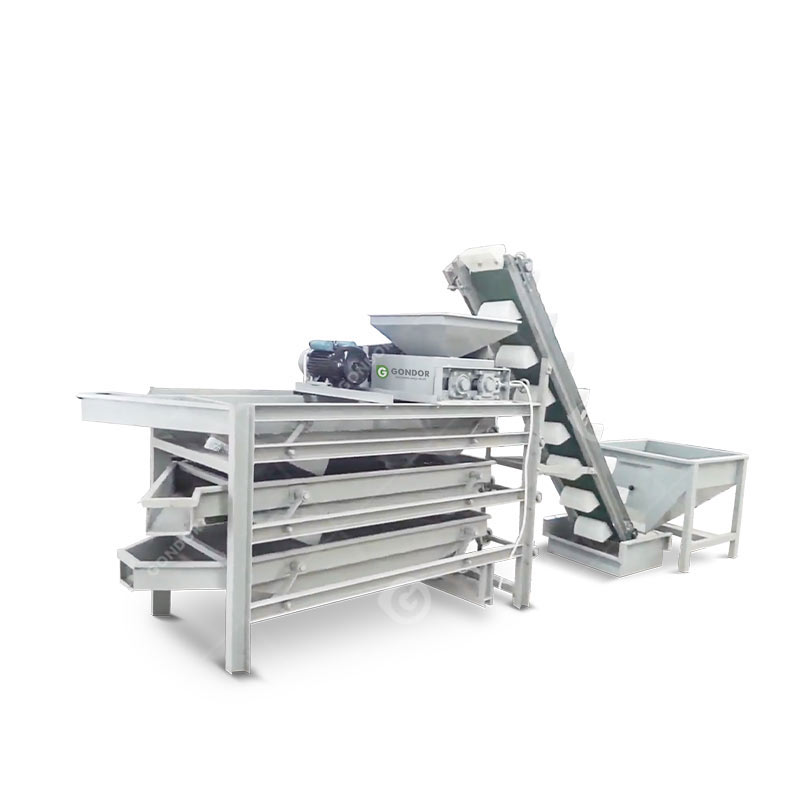

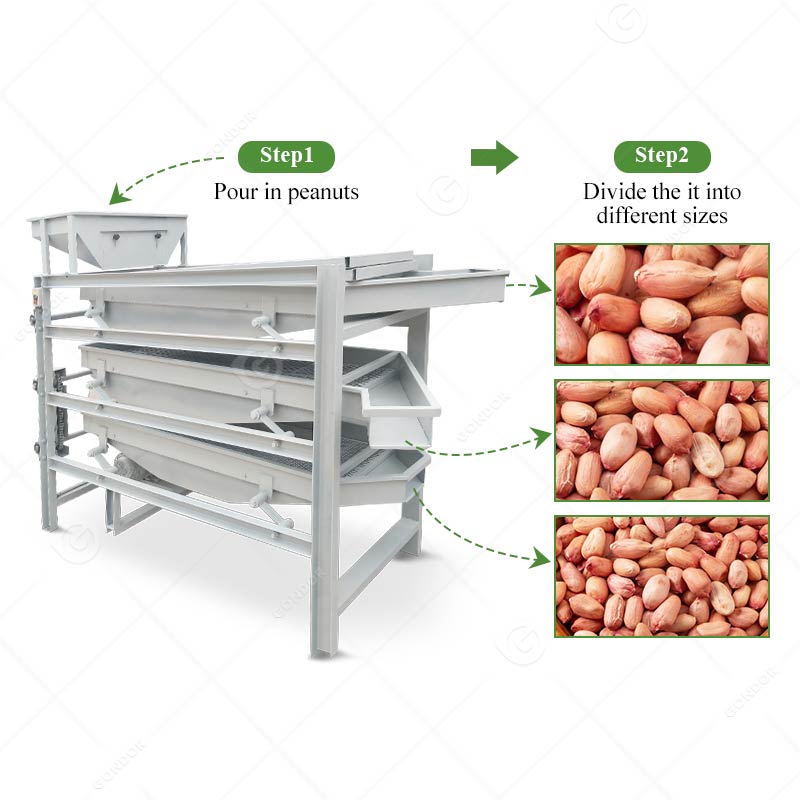

With the increasingly refined development of the global nut processing industry, quality and efficiency have become the core competitiveness of nut processing enterprises. Our peanut grading machine is a star product to cope with this trend. Whether it is peanuts, almonds, hazelnuts, or a variety of beans and nuts, accurate and efficient grading can be achieved on this machine, and the finished product effect of perfect size and high quality, is presented every time.
| Screen layers |
Power |
Voltage |
Material |
Size |
Weight |
Production capacity |
| Primary sieve |
0.18kw |
380V/50Hz |
Carbon Steel |
1.6 * 0.8 * 0.6M |
260kg |
150kg/h
|
|
Secondary sieve
|
1.1kw |
380V/50Hz |
Carbon Steel |
2.4 * 0.8 * 1.4M |
260kg |
200kg/h |
| Third-level sieve |
1.1kw |
380V/50Hz |
Carbon Steel |
2.4 * 0.8 * 1.6M |
300kg |
600-800kg/h
|
|

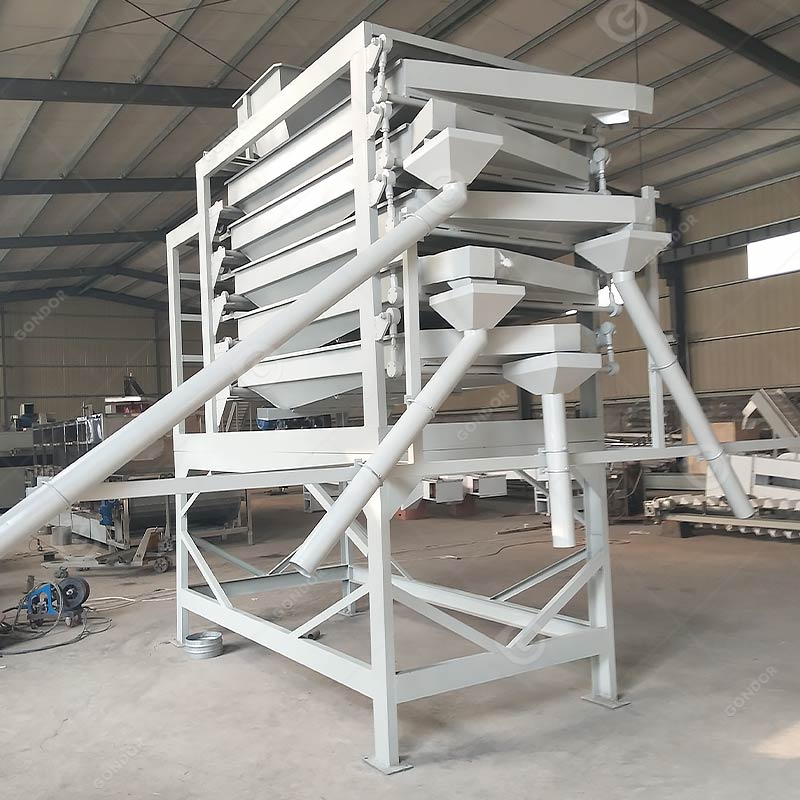

Five-level sieve
|
1.5kw |
380V/50Hz |
Carbon Steel |
2.4 * 0.8 * 2.2M |
500kg |
600-800kg/h
|
Wide Application Fields of Peanut Grading Machine
This groundnut grading machine is widely used in the following industries:
- Food Processing Plants
- Agricultural Collection Centers
- Nut Processing Plants
- Chinese Herbal Medicine Processing
This equipment is used for primary nut processing and baking, and it also facilitates the production of deep-processed products. It can classify different particle sizes, which improves efficiency and consistency. So, it is important in modern food and agriculture.
Features & Advantages of Peanut Sorting Machine
High Efficiency

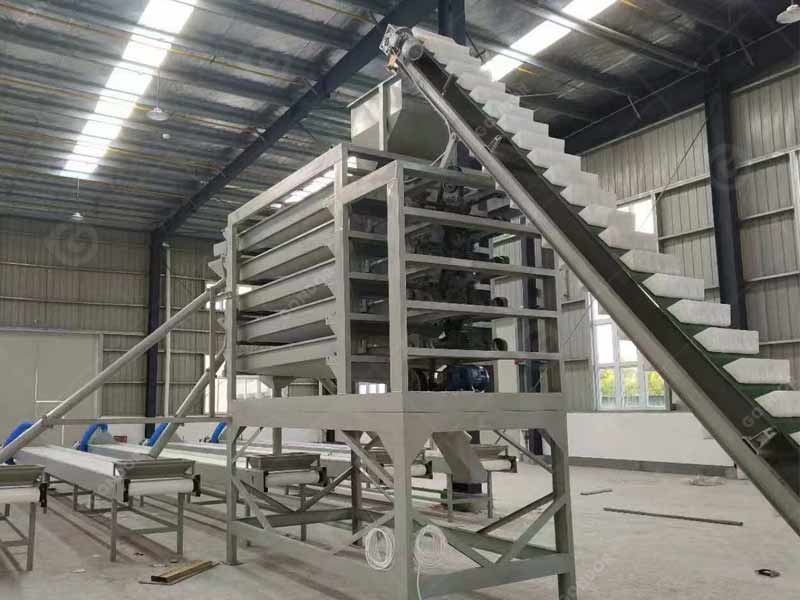

- The entire machine features a combined design of the first, second, and third Vibrating Screens, allowing for multi-stage screening at once.
- The dynamic load capacity is as high as 1.5 times the working weight, ensuring smooth operation even in high-yield operations.
Precise Customization

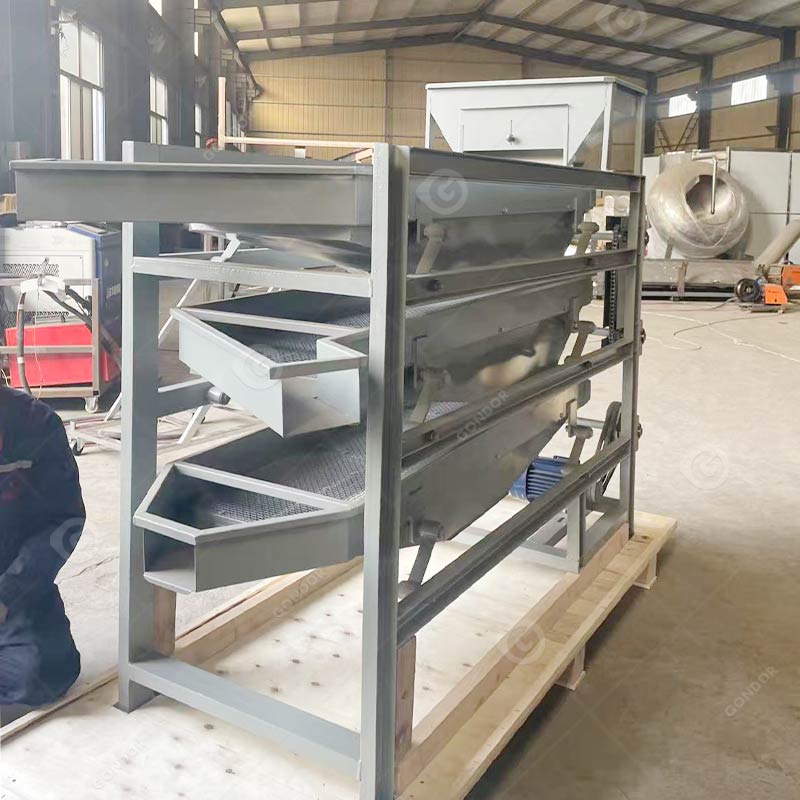

- Three-layer inclined sieve plate design, the angle of the sieve plate can be customized between 15 and 25, which can flexibly adapt to different material characteristics.

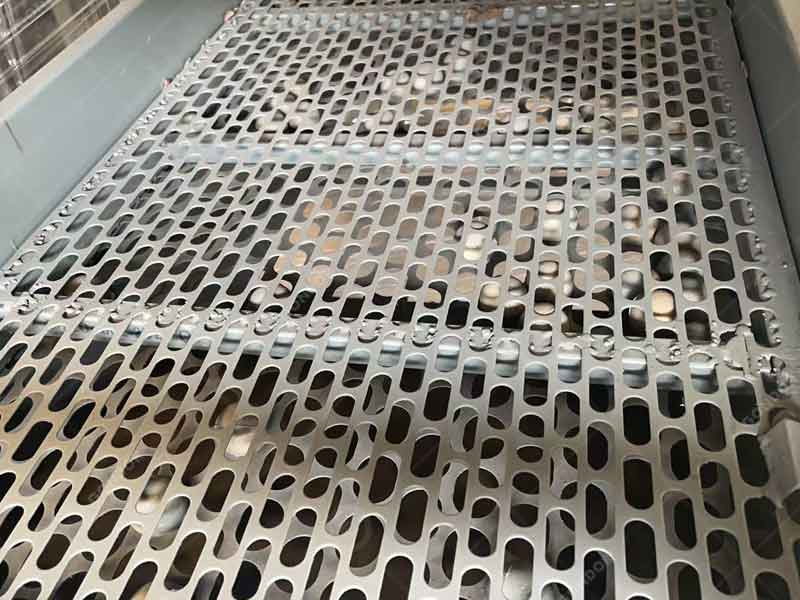

- Perforated plate, wire mesh, and grizzly screen can be selected to ensure accurate
classification:
- Top Screen: 10-50 mm, suitable for separating large particles.
- Middle Screen: 2-10 mm, used for medium particle separation.
- Bottom Screen: 0.2-2 mm, necessary for the fine classification process.
Easy Operation & Maintenance
- Simple structure, all sieve plates are modular in design, which can be replaced quickly and independently.

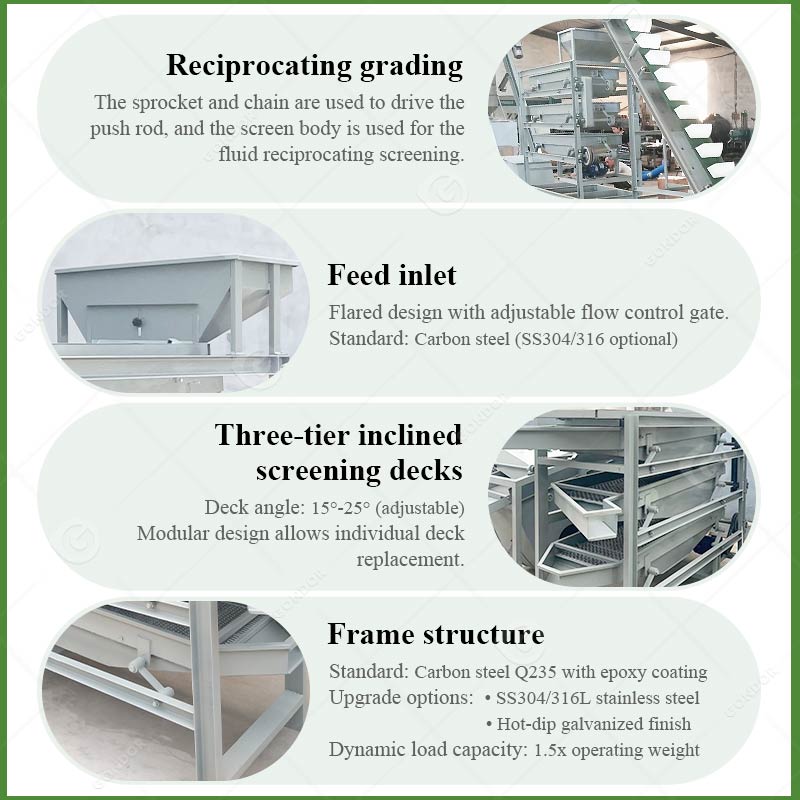

- The sprocket chain is used to drive the push rod to realize smooth reciprocating of the screen body, which reduces the mechanical failure rate.
Premium Material
- The standard material of the equipment is Q235 carbon steel, and the surface epoxy coating is corrosion-resistant.
- It can be upgraded to SS304/316L stainless steel or hot dip galvanized to meet the requirements of different process environments, especially suitable for food-grade or pharmaceutical-grade production.
High Degree of Automation

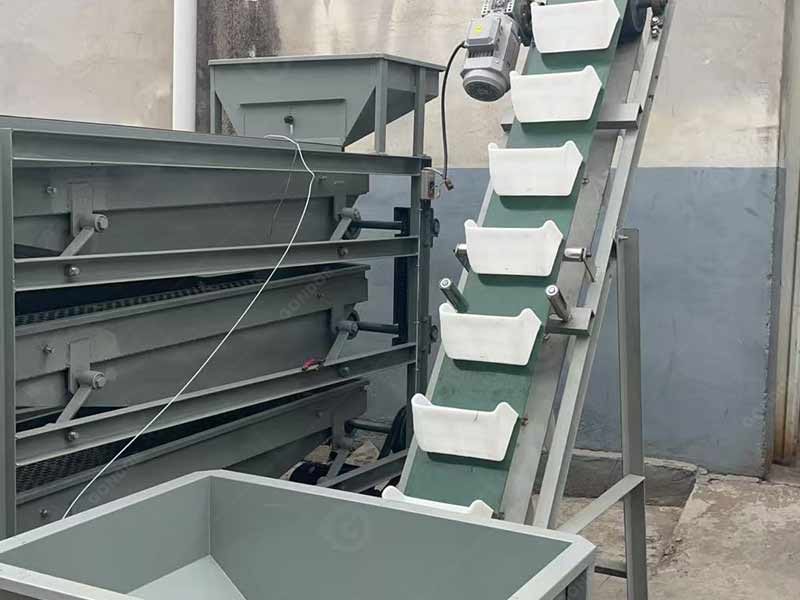

It can be equipped with an automatic discharging system, which effectively reduces the intensity of manual operation and is suitable for assembly line operation.
Make Your Production Line Smarter
Choosing our peanut grading machine not only means more accurate screening and higher efficiency, but also means that you have seized the commanding heights of quality in the global market competition. Whether you are engaged in nut processing, food production, or agricultural product sorting, we can provide you with tailor-made solutions. In addition, we also provide customers with a variety of professional equipment, including the commercial peanut roaster, peanut skin peeler, and color sorter machine, to help you build a complete and efficient production line.
